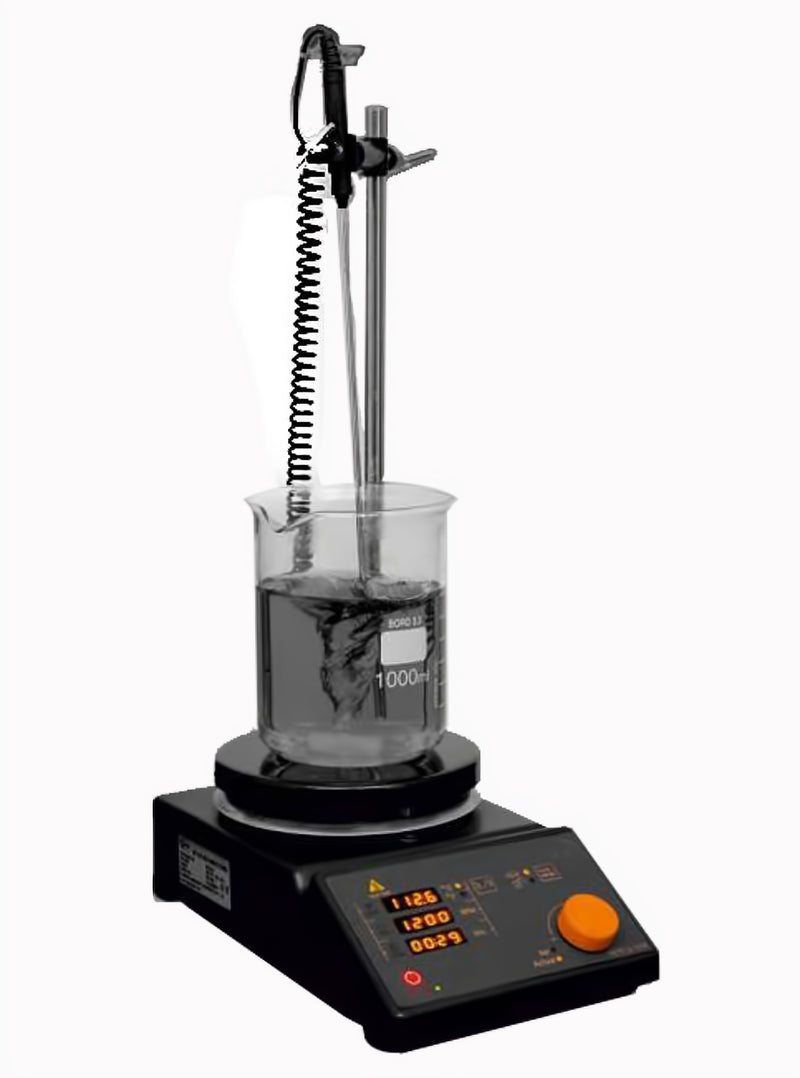

Digital Hot Plate With Magnetic Stirrer

Select size:
Sale price $766.00


This digital hot plate with magnetic stirrer features an aluminum housing with a scratch and chemical resistant stainless steel ceramic coated 6" diameter heating plate. Unit is thermally insulated so the housing is relatively cool to the touch during operation. Designed with double PT sensors, this hot plate also features a digital temperature controller, RPM controller, and time controller, all of which have independent LED displays. Built-in audible alarm at end of time cycle for safety and ease of unsupervised operation. In case of malfunction, display indicates a visual error code for easy diagnosis and resolution. Built-in RS232 port for connection to a computer.

Technical specifications are listed below:
• Operates on 115V / 60 Hz
• Maximum stir speed of 1500 RPM
• Heat output of 650 W
• 0-350°C temperature range, can be displayed in C or F
• Hot top indicator for temperatures above 50°C, even when switched off
• Master selector knob for temperature, stir speed and time settings
• Display can be toggled between hotplate and probe temperature
• Adjustable safety cutoff range of 50-400°C
• Designed for use with beakers/flasks up to 2000ml in capacity

Includes the following accessories:
• Stainless steel rod, 400mm long, 12mm diameter
• PT100 sensor probe
• Magnetic stirbar, 35mm x 9mm
• Boss head clamp
