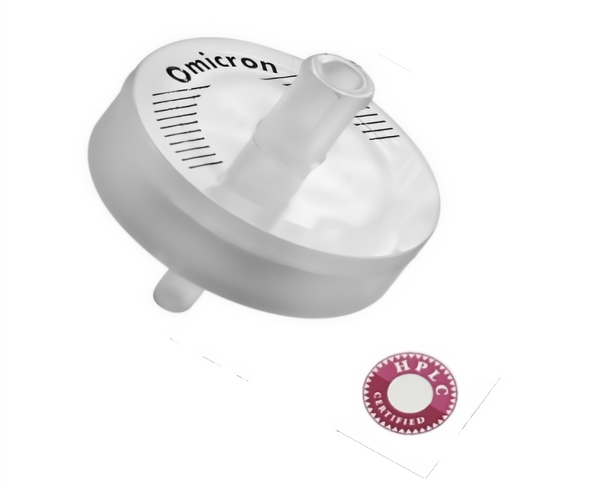

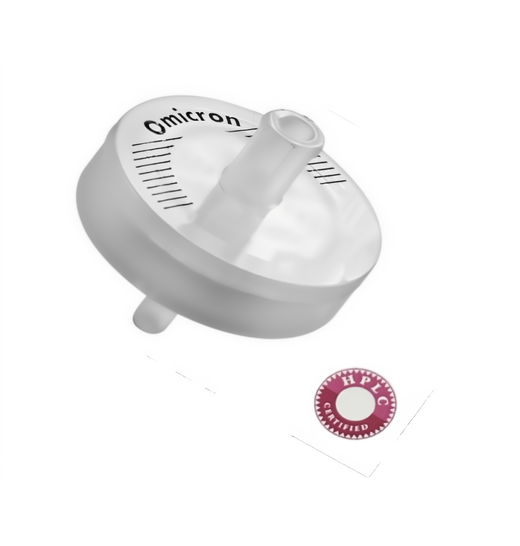

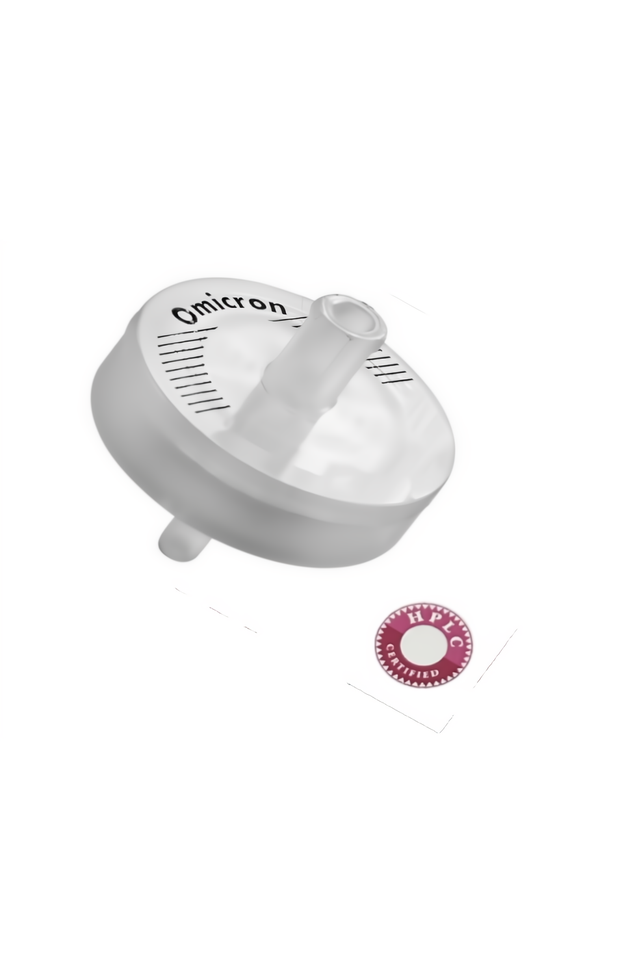

Glass Fiber Filters contain a glass fiber filter with a high retention efficiency of 98% for 1.0 µm / 1.6 µm spherical particles. They are highly effective for clarifying relatively dirty solutions or serving as a prefilter for 0.2 µm or 0.45 µm filters.
Materials of Construction
-
Filter Media: Borosilicate glass fiber
-
Housing: Polypropylene
Technical Specifications
-
Filter Rating: 1.0 µm or 1.6 µm
-
Effective Filtration Area: 3.9 cm² (for 25 mm)
-
Sample Volume: < 150 ml (for 25 mm)
-
Typical Hold-up Volume: < 100 µl (for 25 mm)
-
Typical Water Flow Rate: 795 ml/min at 1.0 bar (100 kPa, 15 psi)
-
Maximum Operating Pressure: 4.1 bar (410 kPa, 60 psi) at 21–24°C (70–75°F)
-
Maximum Operating Temperature: 82°C (180°F) at 2.1 bar (210 kPa, 30 psi)
-
-
High-throughput filtration
-
Sample cleaning and clarification
-
Particle removal
-
Elimination of particulates interfering with UV/VIS spectrophotometric analysis
-
Standalone use or in-series setup with another Omicron syringe filter
-
-
Fine Particle Retention: Efficiently captures fine particles while maintaining a high flow rate.
-
Liquid Analysis: Ideal for collecting suspended solids in potable water as well as natural and industrial wastewater.
-
Long Shelf Life: Can be stored almost indefinitely without experiencing color changes or alterations in filter properties.
-
High Capacity: Unique design provides superior dirt-holding capacity.
-
Product Information
| Autoship Available | No |
|---|
