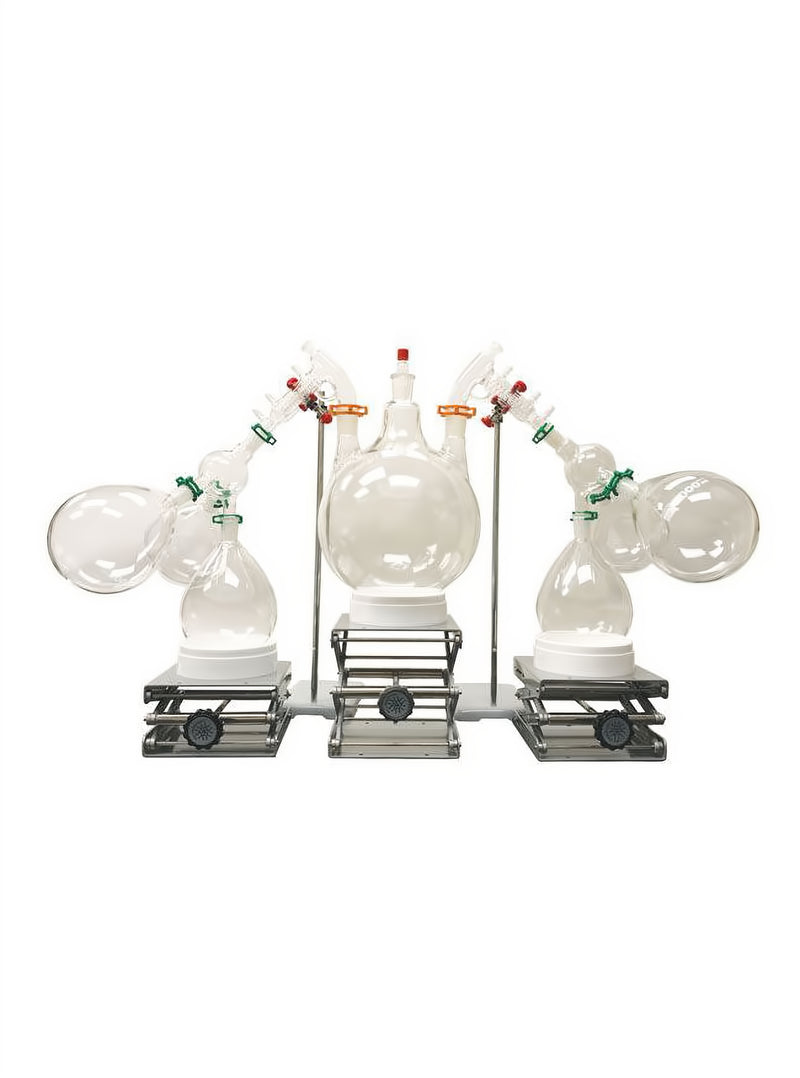

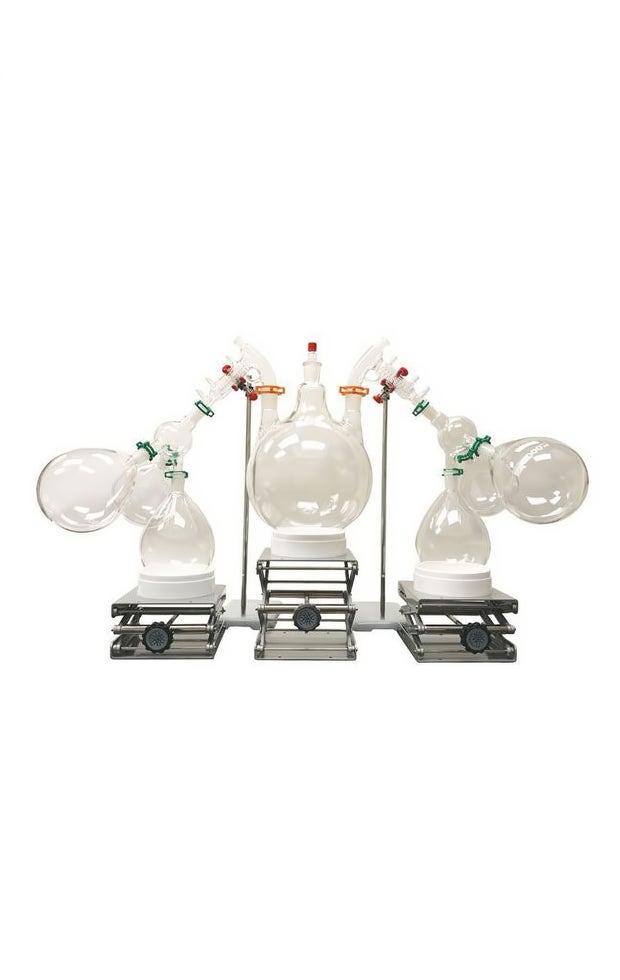

Short Path Distillation Kit

This kit contains essential components for short path distillation. All glass parts
are manufactured from high quality 3.3 borosilicate glass.

Short Path Distillation Head (two included in the kit) with 24/40 flask joints
features a condenser coil and three ¼” hose nozzles, two for condenser and
one for vacuum.

The cow-type Distillation Receiver (two included in the kit) has one 24/40
outer joint and three 24/40 inner joints that can be used to attach up to three
2000ml Single Neck round bottom evaporating flasks (six included in the kit).

The 10000ml round bottom 3-Neck flask includes 24/40 outer joints to accept
the two included Distillation Heads. The center 24/40 joint holds the included
Thermometer Inlet Adapter using a 10/30 port.

Penny Head Glass Stoppers (four included in the kit) are used to cap the
2000ml Single Neck round bottom flasks after distillate is collected.

PLEASE NOTE: Lab Jacks, Support Stands, Flask Stands, and Extension
Clamps with Bosshead are not included in this kit.

Contents:

1. Short Path Distillation Head, Vacuum Jacketed, 24/40, 34/45 . . . . . . . . 2
2. Flask, Round Bottom, 3-Neck 10000ml 24/40, 34/45 . . . . . . . . . . . . . . . 1
3. Distillation Receiver, Cow-Type, 250ml, 1-to-3, 24/40 . . . . . . . . . . . . . . 2
4. Clamp for Jointed Glassware, Plastic, size 24 . . . . . . . . . . . . . . . . . . . . 8
5. Clamp for Jointed Glassware, Plastic, size 34 . . . . . . . . . . . . . . . . . . . . 2
6. Adapter Inlet, Thermometer, 24/40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
7. Flask, Evaporating, Single Neck, 2000ml, 24/40 . . . . . . . . . . . . . . . . . . 6
8. Stopper, Glass, Penny Head, 24/40 (not shown in photo) . . . . . . . . . . . 4
