These extension clamps are built with durable, electroplated zinc alloy and feature dual prong adjustments for versatility. They are suitable for use in environments up to 80°C.
Small Clamp: Includes a 4" stainless steel extension rod. The prongs open to approximately 1.75" with a recommended maximum grip size of about 1.5". Double-keyed spring adjustment screws allow for secure positioning. Prongs are coated with non-slip PVC sleeves and come with fiberglass sleeves. Overall length is 6.75".
Medium Clamp: Features a 5" stainless steel extension rod. The prongs open to roughly 2.75" with a maximum recommended grip size of about 2.5". Equipped with double-keyed spring adjustment screws, the prongs have non-slip PVC covers and fiberglass sleeves. Overall length is 9".
Large Clamp: Also with a 5" stainless steel extension rod, this model offers prongs that open up to approximately 4" with a recommended maximum grip size of about 3.25". Prongs are covered with non-slip PVC sleeves, with an overall length of 10.75".

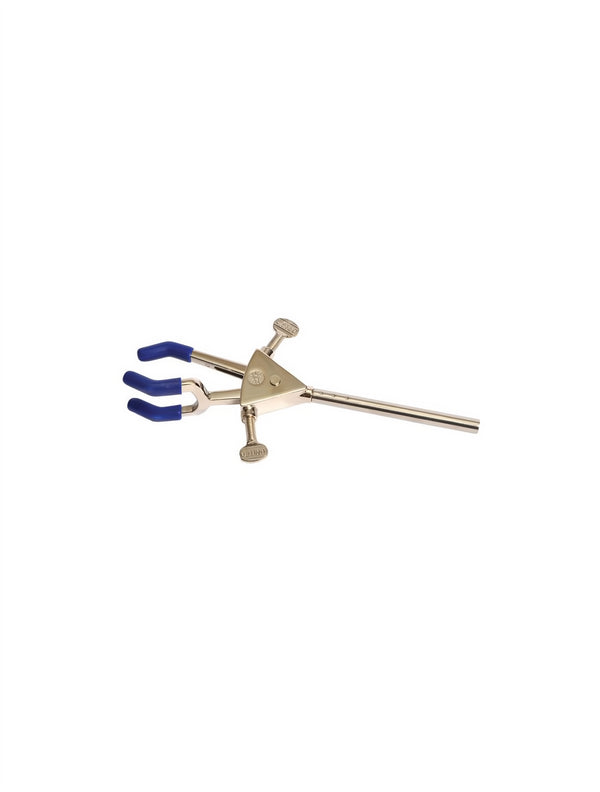

These heavy-duty 3-prong extension clamps are built from durable, nickel-plated zinc to ensure long-lasting reliability. Available in both single wing-nut and dual thumbscrew configurations, they offer a wide grip capacity and precise, gradual adjustment for maximum holding control.
Designed for versatility, the integrated extension rods easily connect to standard laboratory support stands (requires a separate connector). Each clamp comes equipped with removable, non-slip vinyl sleeves for everyday use, as well as interchangeable fiberglass sleeves rated for high-temperature applications above 100°C.
Key Features
-
Rugged Construction: Made from premium, nickel-plated zinc for enhanced durability.
-
Versatile Sizing: Available in small, medium, and large sizes to accommodate various setups.
-
Precise Control: Three-prong design features gradual adjustment for a secure, customizable grip.
-
Flexible Configurations: Choose between single-adjust wing-nut or dual-adjust thumbscrew models.
-

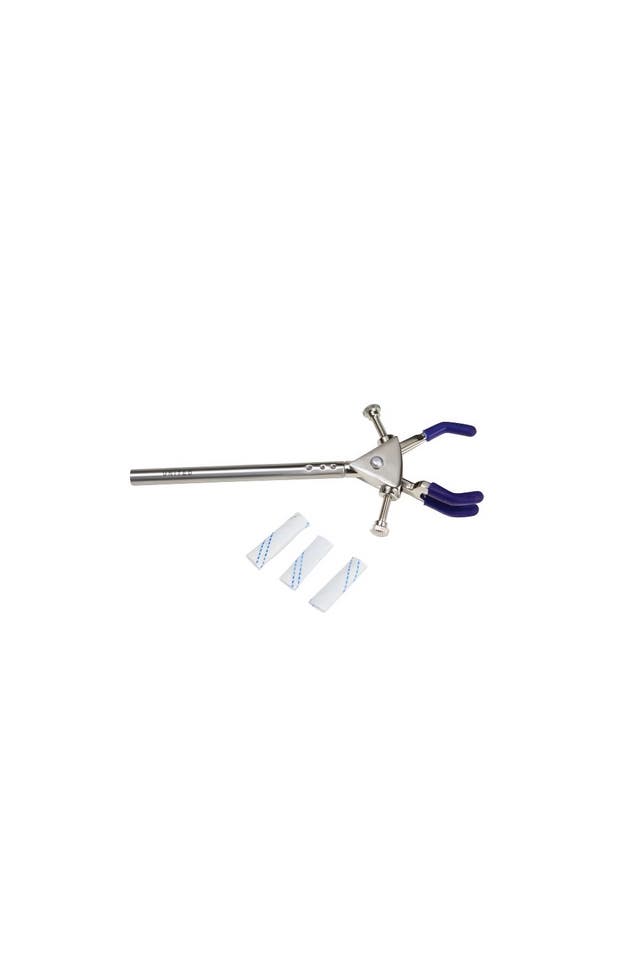

Dual-Sleeve Protection: Includes non-slip vinyl sleeves for standard grip, plus heat-resistant fiberglass sleeves for environments exceeding 100°C.
-
Note: An additional holder/connector is required to secure the clamp's extension rod to a support stand.
SKU Max Grip Size (mm) Prong Width (mm) Arm Length (mm) Arm Dia. (mm) Overall Length (mm) Quantity per Pack S1261-S 45 10 100 8 170 1 S1261-M 69 18 127 11 230 1 S1261-L 102 28 127 11 266 1 -
